SKF 32944/DFC300 Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment 32944/DFC300 Transparent And Fair Price On Time Delivery

SKF 32944/DFC300 Bearing Description

We supply various of SKF 32944/DFC300 bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF 32944/DFC300 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF 32944/DFC300 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF 32944/DFC300 bearings inquire deeply into the running of the machine and friction phenomenon .SKF 32944/DFC300 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF 32944/DFC300 bearings will be arranged timely for we have a large stock of SKF 32944/DFC300 bearings in HongKong.

SKF 32944/DFC300 Bearing Specification

Bearing number : 32944/DFC300

Size (mm) : 220x300x102

Brand : The brand you need

Bore Diameter (mm) : 220

Outer Diameter (mm) : 300

Width (mm) : 102

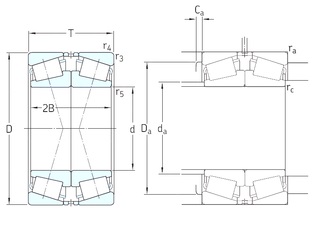

Bearing dimensions and specification in ALIER catalogue:

d – 220 mm

D – 300 mm

T – 102 mm

B – 51 mm

r3 min. – 2,5 mm

r4 min. – 2,5 mm

r5 min. – 1 mm

2B – 102 mm

Ca max. – 9 mm

da max – 234 mm

Da min – 275 mm

Da max. – 286 mm

ra max. – 2 mm

rc max. – 1 mm

Weight – 21 Kg

Basic dynamic load rating (C) – 842 kN

Basic static load rating (C0) – 2000 kN

Fatigue load limit (Pu) – 183

Reference speed – 1100 r/min

Limiting speed – 2000 r/min

Calculation factor (e) – 0,43

Calculation factor (Y0) – 1,6

Calculation factor (Y1) – 1,6

Calculation factor (Y2) – 2,3
