SKF 32938 Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment 32938 Transparent And Fair Price On Time Delivery

SKF 32938 Bearing Description

We supply various of SKF 32938 bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF 32938 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF 32938 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF 32938 bearings inquire deeply into the running of the machine and friction phenomenon .SKF 32938 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF 32938 bearings will be arranged timely for we have a large stock of SKF 32938 bearings in HongKong.

SKF 32938 Bearing Specification

Bearing number : 32938

Size (mm) : 190x260x45

Brand : The brand you need

Bore Diameter (mm) : 190

Outer Diameter (mm) : 260

Width (mm) : 45

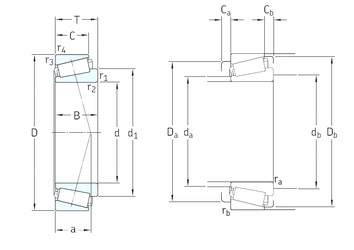

Bearing dimensions and specification in ALIER catalogue:

d – 190 mm

D – 260 mm

T – 45 mm

B – 45 mm

C – 34 mm

a – 55 mm

d1 – 227 mm

r1 min. – 2,5 mm

r2 min. – 2,5 mm

r3 min. – 2 mm

r4 min. – 2 mm

Ca min. – 8 mm

Cb min. – 11 mm

da max – 204 mm

Da min – 235 mm

Da max. – 249 mm

db min – 200 mm

Db min. – 251 mm

ra max. – 2,5 mm

rb max. – 2 mm

Weight – 7 Kg

Basic dynamic load rating (C) – 358 kN

Basic static load rating (C0) – 765 kN

Fatigue load limit (Pu) – 72

Reference speed – 1600 r/min

Limiting speed – 2400 r/min

Calculation factor (e) – 0,48

Calculation factor (Y) – 1,25

Calculation factor (Y0) – 0,7

Tags :  ALIER , 190x260x45
