SKF 32928 Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment 32928 Transparent And Fair Price On Time Delivery

SKF 32928 Bearing Description

We supply various of SKF 32928 bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF 32928 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF 32928 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF 32928 bearings inquire deeply into the running of the machine and friction phenomenon .SKF 32928 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF 32928 bearings will be arranged timely for we have a large stock of SKF 32928 bearings in HongKong.

SKF 32928 Bearing Specification

Bearing number : 32928

Size (mm) : 140x190x32

Brand : The brand you need

Bore Diameter (mm) : 140

Outer Diameter (mm) : 190

Width (mm) : 32

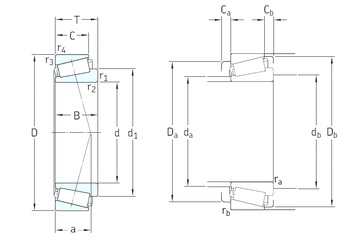

Bearing dimensions and specification in ALIER catalogue:

d – 140 mm

D – 190 mm

T – 32 mm

B – 32 mm

C – 25 mm

a – 33 mm

d1 – 164 mm

r1 min. – 2 mm

r2 min. – 2 mm

r3 min. – 1,5 mm

r4 min. – 1,5 mm

Ca min. – 6 mm

Cb min. – 7 mm

da max – 150 mm

Da min – 177 mm

Da max. – 181 mm

db min – 149 mm

Db min. – 184 mm

ra max. – 2 mm

rb max. – 1,5 mm

Weight – 2,55 Kg

Basic dynamic load rating (C) – 205 kN

Basic static load rating (C0) – 390 kN

Fatigue load limit (Pu) – 40

Reference speed – 2200 r/min

Limiting speed – 3400 r/min

Calculation factor (e) – 0,35

Calculation factor (Y) – 1,7

Calculation factor (Y0) – 0,9
