SKF 32219J2 Bearing Description

We supply various of SKF 32219J2 bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF 32219J2 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF 32219J2 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF 32219J2 bearings inquire deeply into the running of the machine and friction phenomenon .SKF 32219J2 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF 32219J2 bearings will be arranged timely for we have a large stock of SKF 32219J2 bearings in HongKong.

SKF 32219J2 Bearing Specification

Bearing number : 32219J2

Size (mm) : 95x170x45.5

Brand : The brand you need

Bore Diameter (mm) : 95

Outer Diameter (mm) : 170

Width (mm) : 45,5

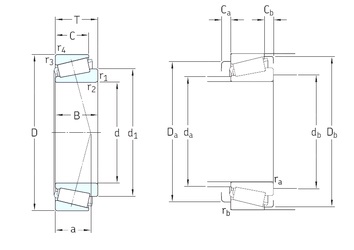

Bearing dimensions and specification in ALIER catalogue:

d – 95 mm

D – 170 mm

T – 45,5 mm

B – 43 mm

C – 37 mm

a – 39 mm

d1 – 128 mm

r1 min. – 3 mm

r2 min. – 3 mm

r3 min. – 2,5 mm

r4 min. – 2,5 mm

Ca min. – 5 mm

Cb min. – 8,5 mm

da max – 108 mm

Da min – 145 mm

Da max. – 158 mm

db min – 107 mm

Db min. – 161 mm

ra max. – 3 mm

rb max. – 2,5 mm

Weight – 4,1 Kg

Basic dynamic load rating (C) – 281 kN

Basic static load rating (C0) – 390 kN

Fatigue load limit (Pu) – 43

Reference speed – 2800 r/min

Limiting speed – 3800 r/min

Calculation factor (e) – 0,43

Calculation factor (Y) – 1,4

Calculation factor (Y0) – 0,8
