SKF 32215T80J2/QDB Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment 32215T80J2/QDB Transparent And Fair Price On Time Delivery

SKF 32215T80J2/QDB Bearing Description

We supply various of SKF 32215T80J2/QDB bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF 32215T80J2/QDB bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF 32215T80J2/QDB bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF 32215T80J2/QDB bearings inquire deeply into the running of the machine and friction phenomenon .SKF 32215T80J2/QDB bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF 32215T80J2/QDB bearings will be arranged timely for we have a large stock of SKF 32215T80J2/QDB bearings in HongKong.

SKF 32215T80J2/QDB Bearing Specification

Bearing number : 32215T80J2/QDB

Size (mm) : 75x130x80

Brand : The brand you need

Bore Diameter (mm) : 75

Outer Diameter (mm) : 130

Width (mm) : 80

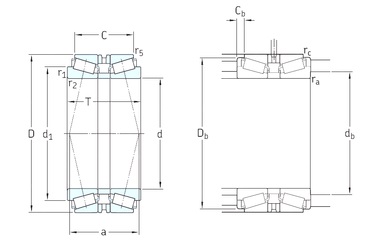

Bearing dimensions and specification in ALIER catalogue:

d – 75 mm

D – 130 mm

T – 80 mm

C – 67,5 mm

a – 72 mm

d1 – 100 mm

r1 min. – 2 mm

r2 min. – 2 mm

r5 min. – 0,6 mm

Cb min. – 6 mm

db min – 84 mm

Db min. – 125 mm

ra max. – 2 mm

rc max. – 0,6 mm

Weight – 6,8 Kg

Basic dynamic load rating (C) – 275 kN

Basic static load rating (C0) – 425 kN

Fatigue load limit (Pu) – 49

Reference speed – 3000 r/min

Limiting speed – 5000 r/min

Calculation factor (e) – 0,43

Calculation factor (Y0) – 1,6

Calculation factor (Y1) – 1,6

Calculation factor (Y2) – 2,3

Tags :  ALIER , 75x130x80
