SKF 32044X Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment 32044X Transparent And Fair Price On Time Delivery

SKF 32044X Bearing Description

We supply various of SKF 32044X bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF 32044X bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF 32044X bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF 32044X bearings inquire deeply into the running of the machine and friction phenomenon .SKF 32044X bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF 32044X bearings will be arranged timely for we have a large stock of SKF 32044X bearings in HongKong.

SKF 32044X Bearing Specification

Bearing number : 32044X

Size (mm) : 220x340x76

Brand : The brand you need

Bore Diameter (mm) : 220

Outer Diameter (mm) : 340

Width (mm) : 76

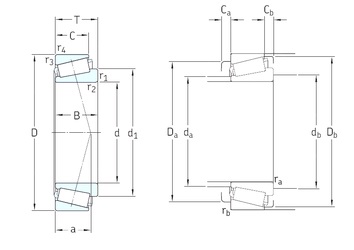

Bearing dimensions and specification in ALIER catalogue:

d – 220 mm

D – 340 mm

T – 76 mm

B – 76 mm

C – 57 mm

a – 72 mm

d1 – 280 mm

r1 min. – 4 mm

r2 min. – 4 mm

r3 min. – 3 mm

r4 min. – 3 mm

Ca min. – 12 mm

Cb min. – 19 mm

da max – 243 mm

Da min – 300 mm

Da max. – 326 mm

db min – 234 mm

Db min. – 326 mm

ra max. – 4 mm

rb max. – 3 mm

Weight – 24,5 Kg

Basic dynamic load rating (C) – 897 kN

Basic static load rating (C0) – 1660 kN

Fatigue load limit (Pu) – 150

Reference speed – 1300 r/min

Limiting speed – 1700 r/min

Calculation factor (e) – 0,43

Calculation factor (Y) – 1,4

Calculation factor (Y0) – 0,8
