SKF 30240J2/DFC570 Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment 30240J2/DFC570 Transparent And Fair Price On Time Delivery

SKF 30240J2/DFC570 Bearing Description

We supply various of SKF 30240J2/DFC570 bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF 30240J2/DFC570 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF 30240J2/DFC570 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF 30240J2/DFC570 bearings inquire deeply into the running of the machine and friction phenomenon .SKF 30240J2/DFC570 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF 30240J2/DFC570 bearings will be arranged timely for we have a large stock of SKF 30240J2/DFC570 bearings in HongKong.

SKF 30240J2/DFC570 Bearing Specification

Bearing number : 30240J2/DFC570

Size (mm) : 200x360x128

Brand : The brand you need

Bore Diameter (mm) : 200

Outer Diameter (mm) : 360

Width (mm) : 128

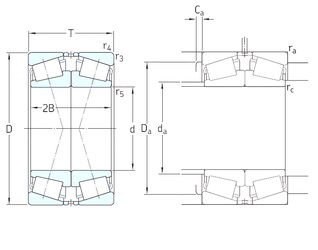

Bearing dimensions and specification in ALIER catalogue:

d – 200 mm

D – 360 mm

T – 128 mm

B – 58 mm

r3 min. – 4 mm

r4 min. – 4 mm

r5 min. – 1,5 mm

2B – 116 mm

Ca max. – 9 mm

da max – 237 mm

Da min – 315 mm

Da max. – 343 mm

ra max. – 3 mm

rc max. – 1,5 mm

Weight – 52 Kg

Basic dynamic load rating (C) – 1340 kN

Basic static load rating (C0) – 2240 kN

Fatigue load limit (Pu) – 212

Reference speed – 1000 r/min

Limiting speed – 1700 r/min

Calculation factor (e) – 0,43

Calculation factor (Y0) – 1,6

Calculation factor (Y1) – 1,6

Calculation factor (Y2) – 2,3
