SKF 29468 E Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment 29468 E Transparent And Fair Price On Time Delivery

SKF 29468 E Bearing Description

We supply various of SKF 29468 E bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF 29468 E bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF 29468 E bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF 29468 E bearings inquire deeply into the running of the machine and friction phenomenon .SKF 29468 E bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF 29468 E bearings will be arranged timely for we have a large stock of SKF 29468 E bearings in HongKong.

SKF 29468 E Bearing Specification

Bearing number : 29468 E

Size (mm) : 340x620x170

Brand : The brand you need

Bore Diameter (mm) : 340

Outer Diameter (mm) : 620

Width (mm) : 170

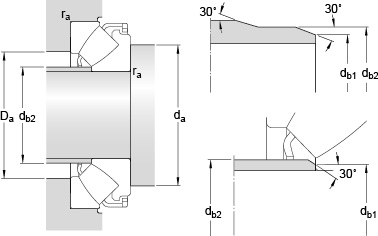

Bearing dimensions and specification in ALIER catalogue:

d – 340 mm

D – 620 mm

H – 170 mm

d₁ – – 557 mm

D₁ – – 445 mm

B – 112 mm

B₁ – 151.4 mm

C – 84 mm

s – 201 mm

r_1,2 – min. – 7.5 mm

d_a – min. – 475 mm

d_b1 – max. – 363 mm

d_b2 – max. – 386 mm

D_a – max. – 530 mm

r_a – max. – 6 mm

Basic dynamic load rating – C – 6700 kN

Basic static load rating – C₀ – 22400 kN

Fatigue load limit – P_u – 1760 kN

Reference speed – 560 r/min

Limiting speed – 1000 r/min

Factor min. axial load – A – 46

Mass bearing – 220 kg
