SKF 29416 E Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment 29416 E Transparent And Fair Price On Time Delivery

SKF 29416 E Bearing Description

We supply various of SKF 29416 E bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF 29416 E bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF 29416 E bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF 29416 E bearings inquire deeply into the running of the machine and friction phenomenon .SKF 29416 E bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF 29416 E bearings will be arranged timely for we have a large stock of SKF 29416 E bearings in HongKong.

SKF 29416 E Bearing Specification

Bearing number : 29416 E

Size (mm) : 80x170x54

Brand : The brand you need

Bore Diameter (mm) : 80

Outer Diameter (mm) : 170

Width (mm) : 54

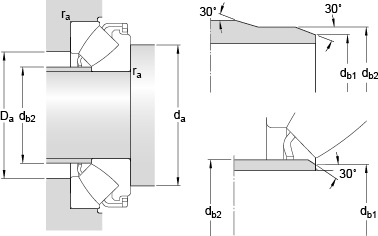

Bearing dimensions and specification in ALIER catalogue:

d – 80 mm

D – 170 mm

H – 54 mm

d₁ – – 147 mm

D₁ – – 113 mm

B – 35 mm

B₁ – 48.1 mm

C – 26.5 mm

s – 50 mm

r_1,2 – min. – 2.1 mm

d_a – min. – 120 mm

d_b1 – max. – 88 mm

d_b2 – max. – 88 mm

D_a – max. – 141 mm

r_a – max. – 2 mm

Basic dynamic load rating – C – 670 kN

Basic static load rating – C₀ – 1630 kN

Fatigue load limit – P_u – 193 kN

Reference speed – 2200 r/min

Limiting speed – 3800 r/min

Factor min. axial load – A – 0.25

Mass bearing – 5.6 kg

Tags :  ALIER , 80x170x54
