SKF 241/850 ECAK30F/W33 Bearing Description

We supply various of SKF 241/850 ECAK30F/W33 bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF 241/850 ECAK30F/W33 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF 241/850 ECAK30F/W33 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF 241/850 ECAK30F/W33 bearings inquire deeply into the running of the machine and friction phenomenon .SKF 241/850 ECAK30F/W33 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF 241/850 ECAK30F/W33 bearings will be arranged timely for we have a large stock of SKF 241/850 ECAK30F/W33 bearings in HongKong.

SKF 241/850 ECAK30F/W33 Bearing Specification

Bearing number : 241/850 ECAK30F/W33

Size (mm) : 850x1360x500

Brand : The brand you need

Bore Diameter (mm) : 850

Outer Diameter (mm) : 1360

Width (mm) : 500

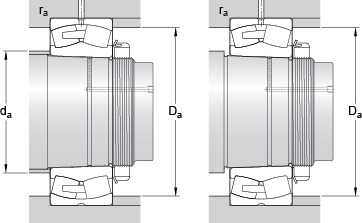

Bearing dimensions and specification in ALIER catalogue:

d – 850 mm

D – 1360 mm

B – 500 mm

d₂ – – 988 mm

D₁ – – 1182 mm

b – 22.3 mm

K – 12 mm

r_1,2 – min. – 12 mm

d_a – min. – 882 mm

D_a – max. – 1312 mm

r_a – max. – 10 mm

Basic dynamic load rating – C – 23827 kN

Basic static load rating – C₀ – 45000 kN

Fatigue load limit – P_u – 2550 kN

Reference speed – 130 r/min

Limiting speed – 190 r/min

Calculation factor – e – 0.35

Calculation factor – Y₁ – 1.9

Calculation factor – Y₂ – 2.9

Calculation factor – Y₀ – 1.8

Weight – 2665 kg
