SKF 23296 CAK/W33 Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment 23296 CAK/W33 Transparent And Fair Price On Time Delivery

SKF 23296 CAK/W33 Bearing Description

We supply various of SKF 23296 CAK/W33 bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF 23296 CAK/W33 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF 23296 CAK/W33 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF 23296 CAK/W33 bearings inquire deeply into the running of the machine and friction phenomenon .SKF 23296 CAK/W33 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF 23296 CAK/W33 bearings will be arranged timely for we have a large stock of SKF 23296 CAK/W33 bearings in HongKong.

SKF 23296 CAK/W33 Bearing Specification

Bearing number : 23296 CAK/W33

Size (mm) : 480x870x310

Brand : The brand you need

Bore Diameter (mm) : 480

Outer Diameter (mm) : 870

Width (mm) : 310

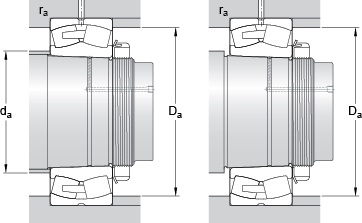

Bearing dimensions and specification in ALIER catalogue:

d – 480 mm

D – 870 mm

B – 310 mm

d₂ – – 602 mm

D₁ – – 741 mm

b – 22.3 mm

K – 12 mm

r_1,2 – min. – 7.5 mm

d_a – min. – 500 mm

d_a – max. – 602 mm

D_a – max. – 838 mm

r_a – max. – 6 mm

Basic dynamic load rating – C – 9805 kN

Basic static load rating – C₀ – 15000 kN

Fatigue load limit – P_u – 950 kN

Reference speed – 380 r/min

Limiting speed – 530 r/min

Calculation factor – e – 0.35

Calculation factor – Y₁ – 1.9

Calculation factor – Y₂ – 2.9

Calculation factor – Y₀ – 1.8

Weight – 775 kg
