SKF 23228-2CS5K/VT143 Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment 23228-2CS5K/VT143 Transparent And Fair Price On Time Delivery

SKF 23228-2CS5K/VT143 Bearing Description

We supply various of SKF 23228-2CS5K/VT143 bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF 23228-2CS5K/VT143 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF 23228-2CS5K/VT143 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF 23228-2CS5K/VT143 bearings inquire deeply into the running of the machine and friction phenomenon .SKF 23228-2CS5K/VT143 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF 23228-2CS5K/VT143 bearings will be arranged timely for we have a large stock of SKF 23228-2CS5K/VT143 bearings in HongKong.

SKF 23228-2CS5K/VT143 Bearing Specification

Bearing number : 23228-2CS5K/VT143

Size (mm) : 140x250x88

Brand : The brand you need

Bore Diameter (mm) : 140

Outer Diameter (mm) : 250

Width (mm) : 88

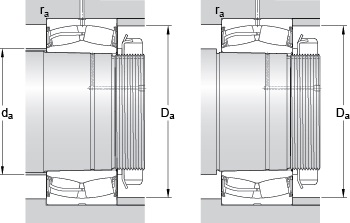

Bearing dimensions and specification in ALIER catalogue:

d – 140 mm

D – 250 mm

B – 88 mm

d₂ – – 161 mm

D₁ – – 225 mm

b – 11.1 mm

K – 6 mm

r_1,2 – min. – 3 mm

d_a – min. – 148 mm

d_a – max. – 161 mm

D_a – max. – 236 mm

r_a – max. – 2.5 mm

Basic dynamic load rating – C – 963 kN

Basic static load rating – C₀ – 1250 kN

Fatigue load limit – P_u – 120 kN

Limiting speed – 480 r/min

Calculation factor – e – 0.33

Calculation factor – Y₁ – 2

Calculation factor – Y₂ – 3

Calculation factor – Y₀ – 2

Weight – 18.5 kg
