SKF 22252 CCK/W33 Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment 22252 CCK/W33 Transparent And Fair Price On Time Delivery

SKF 22252 CCK/W33 Bearing Description

We supply various of SKF 22252 CCK/W33 bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF 22252 CCK/W33 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF 22252 CCK/W33 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF 22252 CCK/W33 bearings inquire deeply into the running of the machine and friction phenomenon .SKF 22252 CCK/W33 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF 22252 CCK/W33 bearings will be arranged timely for we have a large stock of SKF 22252 CCK/W33 bearings in HongKong.

SKF 22252 CCK/W33 Bearing Specification

Bearing number : 22252 CCK/W33

Size (mm) : 260x480x130

Brand : The brand you need

Bore Diameter (mm) : 260

Outer Diameter (mm) : 480

Width (mm) : 130

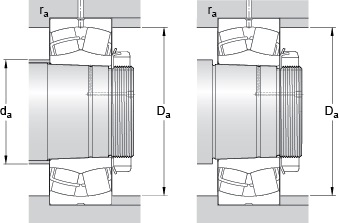

Bearing dimensions and specification in ALIER catalogue:

d – 260 mm

D – 480 mm

B – 130 mm

d₂ – – 312 mm

D₁ – – 421 mm

b – 22.3 mm

K – 12 mm

r_1,2 – min. – 5 mm

d_a – min. – 271 mm

d_a – max. – 312 mm

D_a – max. – 460 mm

r_a – max. – 4 mm

Basic dynamic load rating – C – 2722 kN

Basic static load rating – C₀ – 3550 kN

Fatigue load limit – P_u – 285 kN

Reference speed – 1200 r/min

Limiting speed – 1600 r/min

Calculation factor – e – 0.27

Calculation factor – Y₁ – 2.5

Calculation factor – Y₂ – 3.7

Calculation factor – Y₀ – 2.5

Weight – 106 kg

Tags :  ALIER , 260x480x130
