SKF 22238 CCK/W33 Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment 22238 CCK/W33 Transparent And Fair Price On Time Delivery

SKF 22238 CCK/W33 Bearing Description

We supply various of SKF 22238 CCK/W33 bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF 22238 CCK/W33 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF 22238 CCK/W33 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF 22238 CCK/W33 bearings inquire deeply into the running of the machine and friction phenomenon .SKF 22238 CCK/W33 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF 22238 CCK/W33 bearings will be arranged timely for we have a large stock of SKF 22238 CCK/W33 bearings in HongKong.

SKF 22238 CCK/W33 Bearing Specification

Bearing number : 22238 CCK/W33

Size (mm) : 190x340x92

Brand : The brand you need

Bore Diameter (mm) : 190

Outer Diameter (mm) : 340

Width (mm) : 92

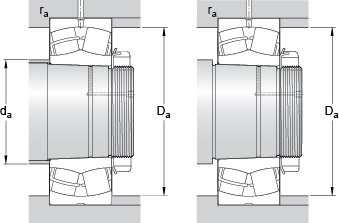

Bearing dimensions and specification in ALIER catalogue:

d – 190 mm

D – 340 mm

B – 92 mm

d₂ – – 225 mm

D₁ – – 294 mm

b – 16.7 mm

K – 9 mm

r_1,2 – min. – 4 mm

d_a – min. – 199 mm

d_a – max. – 225 mm

D_a – max. – 323 mm

r_a – max. – 3 mm

Basic dynamic load rating – C – 1342 kN

Basic static load rating – C₀ – 1700 kN

Fatigue load limit – P_u – 150 kN

Reference speed – 1700 r/min

Limiting speed – 2400 r/min

Calculation factor – e – 0.26

Calculation factor – Y₁ – 2.6

Calculation factor – Y₂ – 3.9

Calculation factor – Y₀ – 2.5

Weight – 35.5 kg

Tags :  ALIER , 190x340x92
