SKF 218 NR Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment 218 NR Transparent And Fair Price On Time Delivery

SKF 218 NR Bearing Description

We supply various of SKF 218 NR bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF 218 NR bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF 218 NR bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF 218 NR bearings inquire deeply into the running of the machine and friction phenomenon .SKF 218 NR bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF 218 NR bearings will be arranged timely for we have a large stock of SKF 218 NR bearings in HongKong.

SKF 218 NR Bearing Specification

Bearing number : 218 NR

Size (mm) : 90x160x30

Brand : The brand you need

Bore Diameter (mm) : 90

Outer Diameter (mm) : 160

Width (mm) : 30

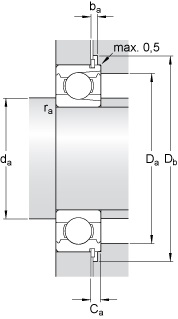

Bearing dimensions and specification in ALIER catalogue:

d – 90 mm

D – 160 mm

B – 30 mm

d₁ – – 110.3 mm

D₂ – – 142.6 mm

D₃ – 155.22 mm

D₄ – 169.7 mm

b – 3.1 mm

C – 4.9 mm

f – 2.82 mm

r₀ – 0.6 mm

r_1,2 – min. – 2 mm

d_a – min. – 100 mm

D_a – max. – 150 mm

D_b – min. – 172 mm

b_a – min. – 3.5 mm

C_a – max. – 7.72 mm

r_a – max. – 2 mm

Basic dynamic load rating – C – 112 kN

Basic static load rating – C₀ – 114 kN

Fatigue load limit – P_u – 4.3 kN

Reference speed – 7000 r/min

Limiting speed – 4300 r/min

Calculation factor minimum radial load – k_r – 0.04

Mass bearing – 2.35 kg

Snap ring – SP 160
