SKF 216-ZNR Bearing

SKF Bearing Professional After-sales Guarantee Easy And Secure Payment 216-ZNR Transparent And Fair Price On Time Delivery

SKF 216-ZNR Bearing Description

We supply various of SKF 216-ZNR bearings. bearings is purity material and high precision , the varieties of SKF bearings is up to thousands of species .SKF 216-ZNR bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of SKF 216-ZNR bearings is the operation and control. In order to ensure the smooth operation and normally rotation,SKF 216-ZNR bearings inquire deeply into the running of the machine and friction phenomenon .SKF 216-ZNR bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of SKF 216-ZNR bearings will be arranged timely for we have a large stock of SKF 216-ZNR bearings in HongKong.

SKF 216-ZNR Bearing Specification

Bearing number : 216-ZNR

Size (mm) : 80x140x26

Brand : The brand you need

Bore Diameter (mm) : 80

Outer Diameter (mm) : 140

Width (mm) : 26

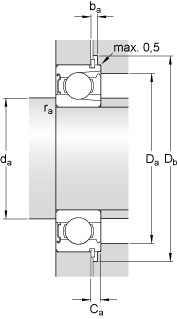

Bearing dimensions and specification in ALIER catalogue:

d – 80 mm

D – 140 mm

B – 26 mm

d₁ – – 95.83 mm

D₂ – – 126.5 mm

D₃ – 135.23 mm

D₄ – 149.7 mm

b – 3.1 mm

C – 4.9 mm

f – 2.82 mm

r₀ – 0.6 mm

r_1,2 – min. – 2 mm

d_a – min. – 88.8 mm

d_a – max. – 88.8 mm

D_a – max. – 129 mm

D_b – min. – 151 mm

b_a – min. – 3.5 mm

C_a – max. – 7.72 mm

r_a – max. – 2 mm

Basic dynamic load rating – C – 88 kN

Basic static load rating – C₀ – 85 kN

Fatigue load limit – P_u – 3.4 kN

Reference speed – 8500 r/min

Limiting speed – 5000 r/min

Calculation factor minimum radial load – k_r – 0.04

Mass bearing – 1.55 kg

Snap ring – SP 140
