INA ZKLDF395 Bearing

INA Bearing Professional After-sales Guarantee Easy And Secure Payment ZKLDF395 Transparent And Fair Price On Time Delivery

INA ZKLDF395 Bearing Description

We supply various of INA ZKLDF395 bearings. bearings is purity material and high precision , the varieties of INA bearings is up to thousands of species .INA ZKLDF395 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of INA ZKLDF395 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,INA ZKLDF395 bearings inquire deeply into the running of the machine and friction phenomenon .INA ZKLDF395 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of INA ZKLDF395 bearings will be arranged timely for we have a large stock of INA ZKLDF395 bearings in HongKong.

INA ZKLDF395 Bearing Specification

Bearing number : ZKLDF395

Size (mm) : 395x525x5

Brand : The brand you need

Bore Diameter (mm) : 395

Outer Diameter (mm) : 525

Width (mm) : 5

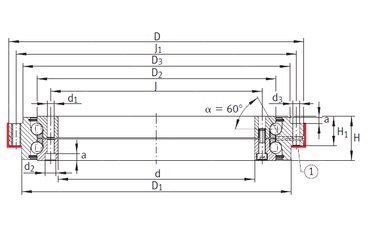

Bearing dimensions and specification in ALIER catalogue:

d – 395 mm

D – 525 mm

H – 5 mm

a – 8,2 mm

d1 – 9,3 mm

d2 – 15 mm

d3 – 9,3 mm

D1 – 486 mm

D2 – 450 mm

D3 – 488 mm

H1 – 42,5 mm

J – 415 mm

J1 – 505 mm

Weight – 39 Kg

Dynamic load rating axial (C) – 241 kN

Static load rating axial (C0) – 1580 kN

Limiting speed – 800 r/min
