INA ZKLDF120 Bearing

INA Bearing Professional After-sales Guarantee Easy And Secure Payment ZKLDF120 Transparent And Fair Price On Time Delivery

INA ZKLDF120 Bearing Description

We supply various of INA ZKLDF120 bearings. bearings is purity material and high precision , the varieties of INA bearings is up to thousands of species .INA ZKLDF120 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of INA ZKLDF120 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,INA ZKLDF120 bearings inquire deeply into the running of the machine and friction phenomenon .INA ZKLDF120 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of INA ZKLDF120 bearings will be arranged timely for we have a large stock of INA ZKLDF120 bearings in HongKong.

INA ZKLDF120 Bearing Specification

Bearing number : ZKLDF120

Size (mm) : 120x210x40

Brand : The brand you need

Bore Diameter (mm) : 120

Outer Diameter (mm) : 210

Width (mm) : 40

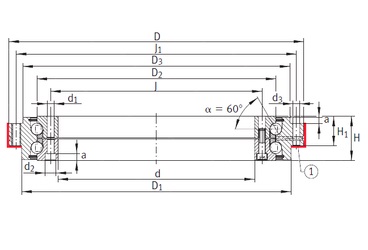

Bearing dimensions and specification in ALIER catalogue:

d – 120 mm

D – 210 mm

H – 40 mm

a – 6,2 mm

d1 – 7 mm

d2 – 11 mm

d3 – 7 mm

D1 – 185 mm

D2 – 159 mm

D3 – 181 mm

H1 – 26 mm

J – 135 mm

J1 – 195 mm

Weight – 6 Kg

Dynamic load rating axial (C) – 76 kN

Static load rating axial (C0) – 315 kN

Limiting speed – 2 400 r/min
