INA RTC460 Bearing

INA Bearing Professional After-sales Guarantee Easy And Secure Payment RTC460 Transparent And Fair Price On Time Delivery

INA RTC460 Bearing Description

We supply various of INA RTC460 bearings. bearings is purity material and high precision , the varieties of INA bearings is up to thousands of species .INA RTC460 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of INA RTC460 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,INA RTC460 bearings inquire deeply into the running of the machine and friction phenomenon .INA RTC460 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of INA RTC460 bearings will be arranged timely for we have a large stock of INA RTC460 bearings in HongKong.

INA RTC460 Bearing Specification

Bearing number : RTC460

Size (mm) : 460x600x22

Brand : The brand you need

Bore Diameter (mm) : 460

Outer Diameter (mm) : 600

Width (mm) : 22

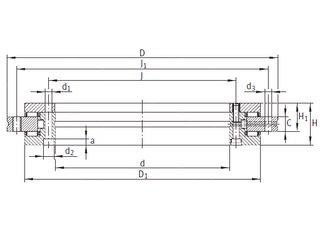

Bearing dimensions and specification in ALIER catalogue:

d – 460 mm

D – 600 mm

C – 22 mm

H – 70 mm

a – 9,3 mm

d1 – 9,3 mm

d2 – 15 mm

d3 – 9,3 mm

D1 – 560 mm

H1 – 46 mm

J – 482 mm

J1 – 580 mm

Weight – 48 Kg

Dynamic load rating radial (C) – 200 kN

Dynamic load rating axial (C) – 355 kN

Static load rating radial (C0) – 765 kN

Static load rating axial (C0) – 2800 kN

Limiting speed – 120 r/min

Tags :  ALIER , 460x600x22
