INA RTC180 Bearing

INA Bearing Professional After-sales Guarantee Easy And Secure Payment RTC180 Transparent And Fair Price On Time Delivery

INA RTC180 Bearing Description

We supply various of INA RTC180 bearings. bearings is purity material and high precision , the varieties of INA bearings is up to thousands of species .INA RTC180 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of INA RTC180 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,INA RTC180 bearings inquire deeply into the running of the machine and friction phenomenon .INA RTC180 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of INA RTC180 bearings will be arranged timely for we have a large stock of INA RTC180 bearings in HongKong.

INA RTC180 Bearing Specification

Bearing number : RTC180

Size (mm) : 180x280x15

Brand : The brand you need

Bore Diameter (mm) : 180

Outer Diameter (mm) : 280

Width (mm) : 15

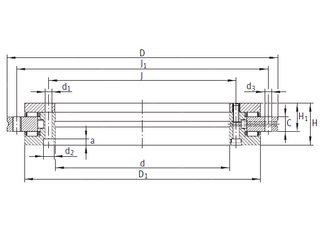

Bearing dimensions and specification in ALIER catalogue:

d – 180 mm

D – 280 mm

C – 15 mm

H – 43 mm

a – 7 mm

d1 – 7 mm

d2 – 11 mm

d3 – 7 mm

D1 – 244 mm

H1 – 29 mm

J – 194 mm

J1 – 260 mm

Weight – 8 Kg

Dynamic load rating radial (C) – 69,5 kN

Dynamic load rating axial (C) – 118 kN

Static load rating radial (C0) – 200 kN

Static load rating axial (C0) – 710 kN

Limiting speed – 280 r/min

Tags :  ALIER , 180x280x15
