INA RTC150 Bearing

INA Bearing Professional After-sales Guarantee Easy And Secure Payment RTC150 Transparent And Fair Price On Time Delivery

INA RTC150 Bearing Description

We supply various of INA RTC150 bearings. bearings is purity material and high precision , the varieties of INA bearings is up to thousands of species .INA RTC150 bearings is known as ” the food of machinery industry” and widely used in different environment and mechanical.The purpose of INA RTC150 bearings is the operation and control. In order to ensure the smooth operation and normally rotation,INA RTC150 bearings inquire deeply into the running of the machine and friction phenomenon .INA RTC150 bearings is widely used in automobile, motor, gear, injection molding machines, machine tools, mining machinery, engineering machinery, motorcycles, office equipment, paper making machinery, pumps and compressors, wind power generator and so on.The shipment of INA RTC150 bearings will be arranged timely for we have a large stock of INA RTC150 bearings in HongKong.

INA RTC150 Bearing Specification

Bearing number : RTC150

Size (mm) : 150x240x12

Brand : The brand you need

Bore Diameter (mm) : 150

Outer Diameter (mm) : 240

Width (mm) : 12

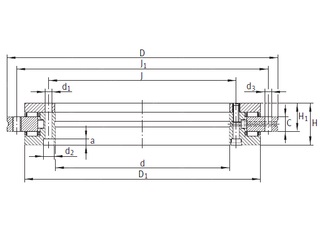

Bearing dimensions and specification in ALIER catalogue:

d – 150 mm

D – 240 mm

C – 12 mm

H – 40 mm

a – 7 mm

d1 – 7 mm

d2 – 11 mm

d3 – 7 mm

D1 – 214 mm

H1 – 26 mm

J – 165 mm

J1 – 225 mm

Weight – 5,8 Kg

Dynamic load rating radial (C) – 56 kN

Dynamic load rating axial (C) – 112 kN

Static load rating radial (C0) – 170 kN

Static load rating axial (C0) – 630 kN

Limiting speed – 320 r/min

Tags :  ALIER , 150x240x12
